To provide certain degree of resistance to shearing force and fire.
To separate different materials and provide certain degree of draining and filtering functions to the structure for overall stability.
Check ACETex®
To reinforce and stablize the structure with the designed strength.
Check ACEGrid®

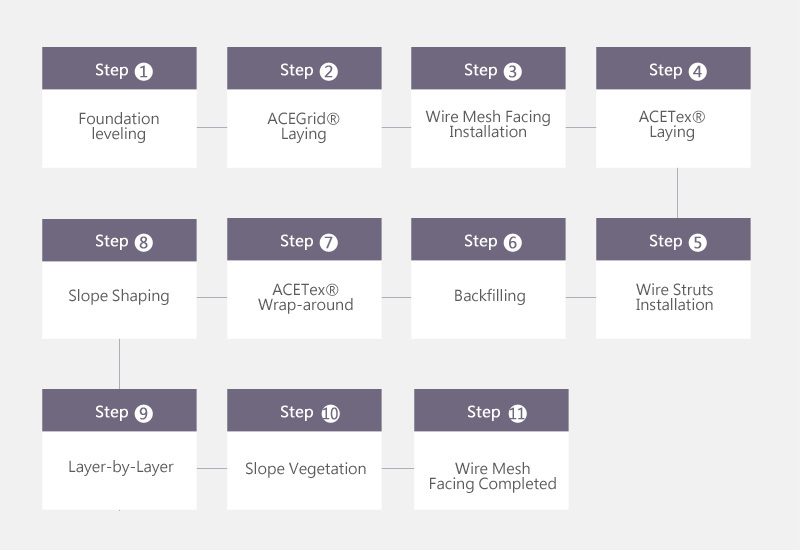

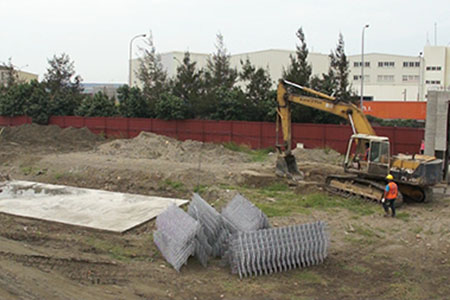

Clean the ground surface of the site, and excavate in accordance with the levelling layout. Then compact the ground to the required compactness.

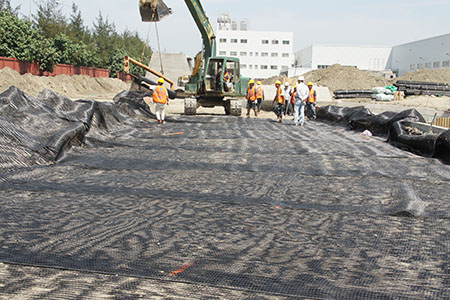

Cut ACEGrid® to the size specified on the design drawing. ACEGrid® should be laid flat without any corrugation. Anchorage should be done with the anchorage interval specified on the design drawing.

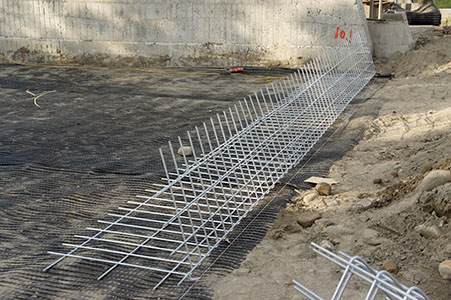

Install the wire mesh facing with arrangement specified in the design drawing.

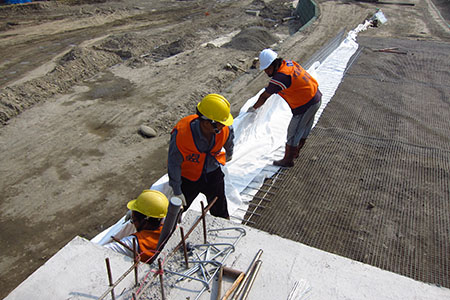

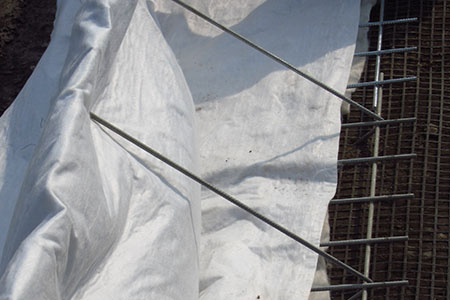

Cut ACETex® to required size and lay it flat to the construction surface. The overlap of ACETex® should follow the specification mentioned on the design drawing.
Install bracing to the wire mesh facing in accordance with the design drawing.

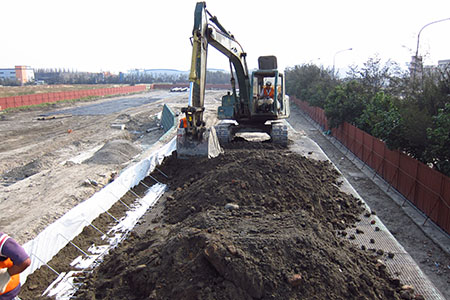

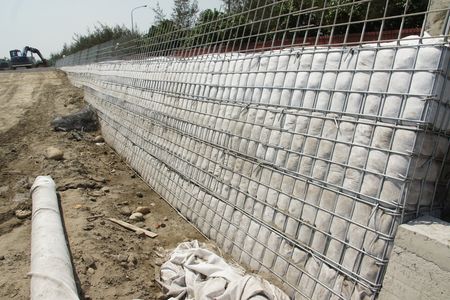

Backfill at the back of the mesh wire facing. Then, perform compaction from the facing inward to the backfill area to meet the required compactness specified on the design drawing.

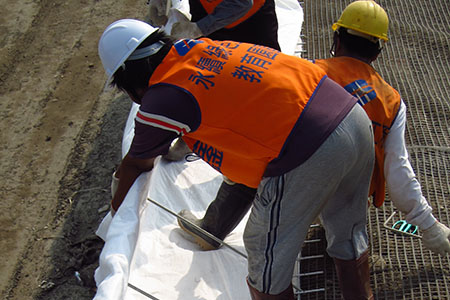

Wrap-around with the reserved length of ACETex®; make sure they are free of corrugation. Anchorage should be done with the anchorage interval specified on the design drawing.
Use excavator grab or available compactor to compact and shape the slope to requirement.
Repeat step 2 to 8 to achieve the required height specified in the design drawing.

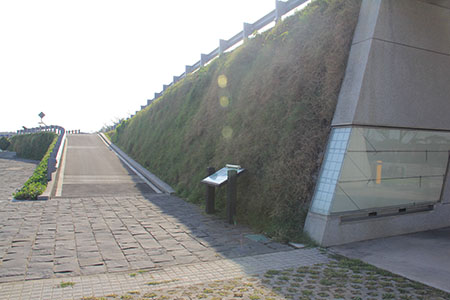

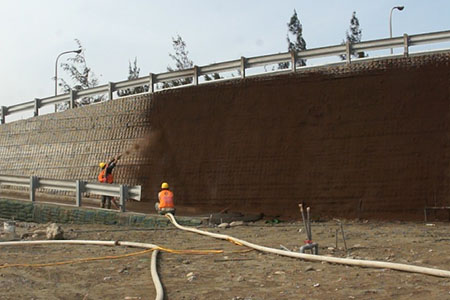

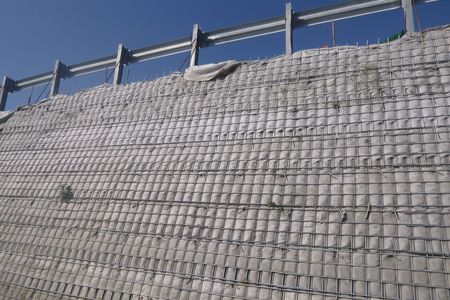

Perform slope vegetation to get a green and natural appearance, and also enhance the slope’s resistance to erosion.
.
